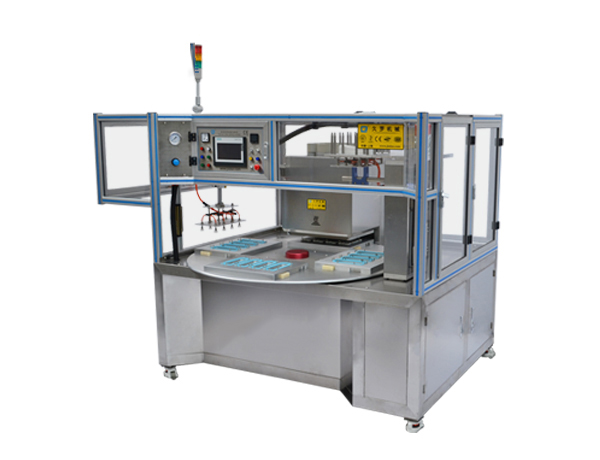

吸塑熱壓封口機
【機器用途】
吸塑封口機有圓盤式和連續式兩種，主要適用于軟件、食品、化妝品、印刷、制藥及地板、陶瓷、飲料、五金行業的特大批量包裝。
Blister sealing machine has disc type and continuous type two kinds, mainly is suitable for the software, food, cosmetics, printing, pharmaceutical and floor, ceramic, beverage, heavy metal industry in bulk packaging.
連續式吸塑封口機工作原理及操作程序：該機器主要利用塑料的熱塑性進行加熱軟化，經大的壓力讓塑料與紙卡熔接。 手工放塑料泡殼→放產品→放紙卡→加熱加壓封口成型→自動卸載封好產品
Continuous blister sealing machine working principle and operating procedure: the main use of thermoplastic plastic machine heating softening, the pressure to weld plastic and paper card. Manually put the plastic blister - products - put paper card to heat sealed pressure molding, automatic unloading sealed products.
型 號 | HYX-50 | HYX-LX60 |
使 用 電 源 Power | 220V/50HZ 3KW | 220V/50HZ 三相四線 |
加熱時間（秒） Heating time | 0 —10秒（可調）adjustable | 0 —10秒（可調） |
加熱方式 Way of heating | 上加熱/下加熱 Upper heating/down heating | 上加熱/下加熱 Upper heating/down heating |
壓板面積 Pressure board area | 480mm×340mm | 590-350mm |
轉盤面積 Disc area | Ф980 mm |
|
生 產 能 力 Productivity | 3-7秒/模（一般產品） 3-7seconds/mould(normally) | 一次封口20-22個產品 One time seal 20-22 pcs products |
模 具 數 量 Mould quantity | 一套三副/二副（需定制） 2-3pairs/set(customized) | 一套20-22付 20-22pairs/set
|
包 裝 物 高 度 Height of packing items | 2 -150mm(可改裝) Can be modified | 2 -150mm(可改裝) Can be modified |
包 裝 材 料 Packing material | 吸塑件和上膠紙卡 Blister-card | 吸塑件和上膠紙卡 Blister-card |
外形尺寸 Overall dimensions | 1080mm×980mm×1460mm | 5100mm-1000mm-2000mm |
重 量 Weight | ≈150kg | 約950kg |
